There are 2 kinds of fireproof aluminum composite panel, B1 class and A2 class.

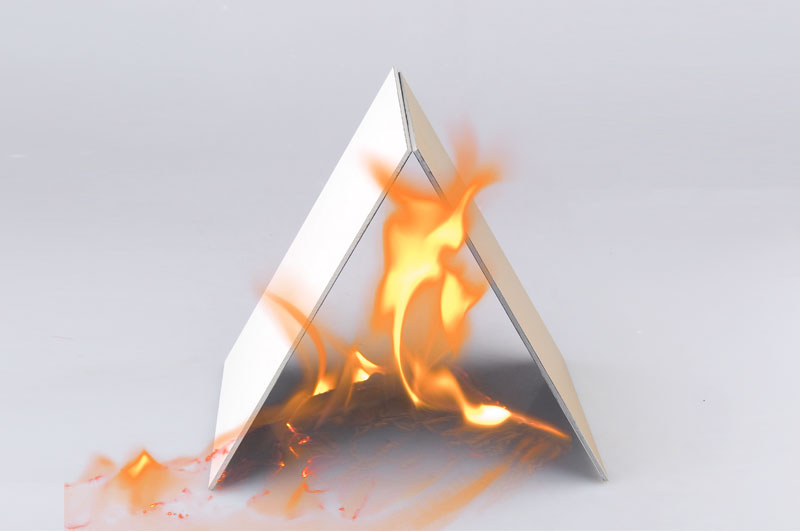

For B1 class fireproof aluminum composite panel, it contains: 55% - 55% flame retardant, the main ingredients are aluminum oxide and magnesium oxide; When B1 grade panels are put on fire, it can be catched on fire after 5 minutes, and when the fire leave the panels, the fire on the panels will extinguish after 10 seconds.



For A2 class fireproof aluminum composite panel, it Contains 88% - 90% of the flame retardant,the main ingredients are aluminium hydroxide and magnesium hydroxide ; it can be catched on fire after 20 minutes, and the fire will extinguish at once when the fire leave the panels.


Specifications and Sizes:
Aluminum skin thickness: 0.20mm-0.50mm
Total panel thickness: 4mm-6mm
Width:1000mm,1220mm(regular),1250mm,1500mm,1550mm,1575mm(maximum)
Length: any size

Standard size:1220mm(Width) ×2440mm(Length)
Surface Treatment:PVDF coating and PE coating

Available Colors:
Any colors in RAL color chart.

Production Capability: 300000SQM/Month
